Lubratec® Folding Front
Comfortable closure for wide openings and passageways
Especially in agriculture, there are many types of buildings, such as machine halls and feed stores, which require wide doors and access roads for efficient farming. Lubratec folding fronts are easy to operate in addition to their primary function as wind and weather protection and can also withstand intensive use and high wind loads. Thanks to integrated cross belts and rollers in lateral guide rails, they can also withstand large wind loads. Lateral sealing lips prevent the entry of draughts. Even large openings can be closed with our folding fronts without any problems, without the need for additional front locking.
The innovative corner deflection of the Curve product design means that when open, the curtain is not gathered above the opening but is pulled into the building structure and stored there. This reduces the height loss to just 10 cm. Roller-equipped storage arms enables a compact and material-friendly roll up. The combination of deflection and storage arms is patent pending and makes Curve the most advanced solution of its kind. Functional, space-saving and ideal for closing large door openings.
Lubratec Folding front
Product benefits
- Suitable for daily opening and closing
- Low space requirement on all sides in plane of fixing
- High wind load capacity thanks to integral horizontal belts and rollers in lateral guide rails
- Additional ventilation effect
- No locking device needed despite large opening sizes
- Incorporated lip seals to prevent draughts from air infiltration at sides
Additional product advantages of Folding front Curve
- The blind ‘disappears’ into the building
- Minimal loss of clearance height thanks to corner deflection
- Customised design to meet your requirements
| Folding front | Folding front Curve | |
|---|---|---|
| Opening direction | Folding curtain opens from bottom upwards and gathers at top | |

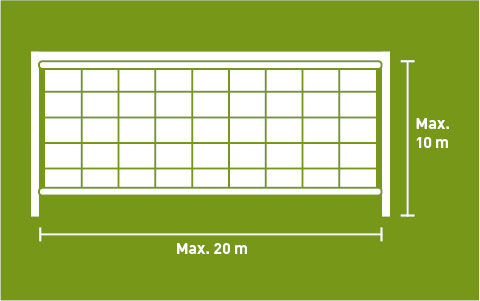

| Opening height | Max. 10 m | |
| Opening width | Max. 20 m | |
| Material | PVC-coated PES fabric | |
| Drive | Plug-in drive 400 V / 50 Hz | Plug-in drive 400 V / 50 Hz |
Building Information Modeling
Would you like to start planning your textile folding door straight away? Then download the BIM data and CAD designs for your individual folding front directly from our new portal. With just a few clicks, you can select the desired drawing in the required format and start the download. If you have any questions during the planning process, please do not hesitate to contact us.
