Lubratec® Ceiling Fans
Our Lubratec ceiling fans are special large capacity fans with a very high air circulation capacity and low energy consumption. They distribute the air in the barn gently but effectively without creating draughts. In this way, the energy-efficient large fans supply your animals with sufficient fresh air, discharge the used air from them and the barn is pleasantly cooled.
Depending on local conditions and requirements, you can choose from four sizes. Our ceiling fans are particularly characterised by their conically shaped blades, which result in a high degree of efficiency. You can expand them at any time with control and regulation systems.
The Lubratec Ceiling Fans can be integrated into theLubratec Smart System.
Lubratec Ceiling Fans
Product benefits
- Available in four sizes: Ø 3.66 m, Ø 4.88 m, Ø 6.10 m, and Ø 7.30 m
- Higher air output thanks to innovative drive technology
- Maintenance-free, gearless direct drive
- Performance of a geared motor combined with the energy efficiency of a magnetic motor
- Energy-efficient cooling for improved animal welfare
- Integrable into the Lubratec Smart System
Diameter | Ø 3.66 m | Ø 4.88 m | Ø 6.10 m | Ø 7.30 m |
|---|---|---|---|---|
| Area served | ca. Ø 15 m | ca. Ø 20 m (* ca. Ø 28 m) | ca. Ø 25 m (* ca. Ø 35 m) | ca. Ø 30 m (* ca. Ø 44 m) |
| Drive | Magnetic motor | |||

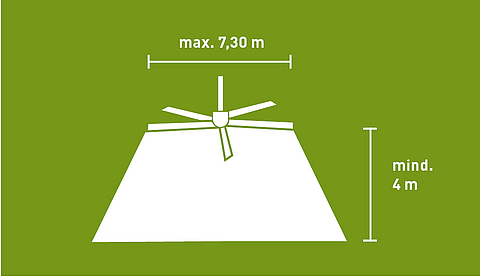

| Installation recommendation | The optimal installation height corresponds to the fan diameter. The higher the fan is mounted, the more evenly the air is distributed. | |||
| Control | Multiple fans of this type can be controlled via a SmartController. Automation is achieved using the SmartPad combined with appropriate sensors. | |||
| * Manufacturer's specification under laboratory conditions (empty hall). | ||||
Efficient Air Movement at Peak Performance
The modern permanent-magnet EC motor combines the high power output of a traditional geared motor with the efficiency of a magnetic motor. Five aerodynamically optimised extruded-profile blades distribute air gently and evenly throughout the barn - effectively and without creating unpleasant drafts.
The continuous airflow reliably supplies the animals with fresh air while exhausting stale barn air. On warm days, it creates a pleasant cooling effect that supports animal well-being. The rotating drive unit cools itself during operation, while high-quality components ensure superior performance and a long service life.
Thanks to their exceptionally quiet and energy-efficient operation, Lubratec ceiling fans are ideal for barns with large air volumes.
The integrated reverse function supports air exchange within the barn, particularly during autumn and winter. By reversing the direction of rotation, stale air laden with harmful gases is directed upwards, allowing it to escape the barn efficiently through the roof ridge. In this way, the ceiling fan contributes to improved air quality and a pleasant barn climate, even during the cold season.
